Blanks for Cutting Tools

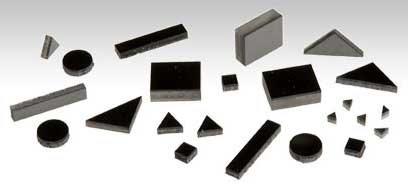

ASP- PCD cutting tool blanks are produced by sintering selected diamond particles at high pressure and high temperature, and consist of diamond layer and tungsten carbide substrate. ASP-PCD Blanks provide the hardness, abrasion resistance and thermal conductivity of natural diamond, combined with the toughness of tungsten carbide. The work piece processed by PCD has good surface finish and no need being ground. It is an ideal tool material for its long life and high efficiency. SP-PCD is widely used for the machining of non-ferrous metals and alloys, such as aluminum, copper, aluminum / gray iron composites, as well as nonmetallic materials such as wood, chipboard, ceramics, plastic, rubber etc, where high abrasion resistance and good surface finish are required. The products are available in 5µm, 10 µm and 25µm.


Specifications

Shape Rounds	Product No	Angle (A)	Diameter (D)	Thickness (T)
	ASP-R360/8.0	360	8	1.6/2.0/3.2
	ASP-R360/13.2	360	13.2	1.6/2.0/3.2
	ASP-R360/30.0	360	30	1.6/2.0/3.2
	ASP-R360/38.0	360	38	1.6/2.0/3.2
	ASP-R360/44.0	360	44	1.6/2.0/3.2
Shape Half Round	Product No	Angle (A)	Diameter (D)	Thickness (T)
	ASP-R180/8.0	180	8	1.6/2.0/3.2
	ASP-R180/13.2	180	13.2	1.6/2.0/3.2
	ASP-R180/30.0	180	30	1.6/2.0/3.2
	ASP-R180/38.0	180	38	1.6/2.0/3.2
	ASP-R180/44.0	180	44	1.6/2.0/3.2
Shape Segments	Product No	Angle (A)	Leg (L)	Thickness (T)
	ASP-R45/3.8	45	3.8	1.6/2.0/3.2
	ASP-R45/4.5	45	4.5	1.6/2.0/3.2
	ASP-R45/6.3	45	6.3	1.6/2.0/3.2
	ASP-R60/3.8	60	3.8	1.6/2.0/3.2
	ASP-R60/4.5	60	4.5	1.6/2.0/3.2
	ASP-R60/6.4	60	6.4	1.6/2.0/3.2
	ASP-R90/3.9	90	3.9	1.6/2.0/3.2
	ASP-R90/4.6	90	4.6	1.6/2.0/3.2
	ASP-R90/6.5	90	6.5	1.6/2.0/3.2
Shape Triangle	Product No	Angle (A)	Leg (L)	Thickness (T)
	ASP-T35/3.8	35	3.8	1.6/2.0/3.2
	ASP-T35/4.5	35	4.5	1.6/2.0/3.2
	ASP-T35/5.0	35	5	1.6/2.0/3.2
	ASP-T35/7.0	35	7	1.6/2.0/3.2
	ASP-T35/9.0	35	9	1.6/2.0/3.2
	ASP-T45/4.0	45	4	1.6/2.0/3.2
	ASP-T45/5.0	45	5	1.6/2.0/3.2
	ASP-T45/6.2	45	6.2	1.6/2.0/3.2
	ASP-T55/4.0	55	4	1.6/2.0/3.2
	ASP-T55/5.0	55	5	1.6/2.0/3.2
	ASP-T55/7.0	55	7	1.6/2.0/3.2
	ASP-T60/3.0	60	3	1.6/2.0/3.2
	ASP-T60/4.0	60	4	1.6/2.0/3.2
	ASP-T60/5.0	60	5	1.6/2.0/3.2
	ASP-T60/6.5	60	6.5	1.6/2.0/3.2
	ASP-T60/7.0	60	7	1.6/2.0/3.2
	ASP-T60/9.5	60	9.5	1.6/2.0/3.2
	ASP-T90/3.0	90	3	1.6/2.0/3.2
	ASP-T90/4.0	90	4	1.6/2.0/3.2
	ASP-T90/5.0	90	5	1.6/2.0/3.2
	ASP-T90/6.5	90	6.5	1.6/2.0/3.2
	ASP-T90/7.5	90	7.5	1.6/2.0/3.2
	ASP-T90/9.5	90	9.5	1.6/2.0/3.2
Shape	Product No	Length (L)	Width (W)	Thickness (T)
	ASP-L3.5/3.0	3.5	3	1.6/2.0/3.2
	ASP-L4.0/2.5	4	2.5	1.6/2.0/3.2
	ASP-L5.0/2.0	5	2	1.6/2.0/3.2
	ASP-L5.0/2.5	5	2.5	1.6/2.0/3.2
	ASP-L5.0/3.5	5	3.5	1.6/2.0/3.2
	ASP-L5.0/4.0	5	4	1.6/2.0/3.2
	ASP-L6.0/3.5	6	3.5	1.6/2.0/3.2
	ASP-L6.0/4.3	6	4.3	1.6/2.0/3.2
	ASP-L6.0/4.5	6	4.5	1.6/2.0/3.2
	ASP-L6.0/5.0	6	5	1.6/2.0/3.2
	ASP-L7.0/3.0	7	3	1.6/2.0/3.2
	ASP-L8.0/2.0	8	2	1.6/2.0/3.2
	ASP-L10.0/3.0	10	3	1.6/2.0/3.2
	ASP-L11.0/2.5	11	2.5	1.6/2.0/3.2
	ASP-L12.0/3.0	12	3	1.6/2.0/3.2
	ASP-L13.0/3.0	13	3	1.6/2.0/3.2
	ASP-L20.0/20.0	20	20	1.6/2.0/3.2
	ASP-L25.0/3.0	25	3	1.6/2.0/3.2



• Standard diamond layer thickness is 0.5mm
• Available in three grades : 5µmã€?0µm and 25µm
• Typical order code : ASP-R360/30.0-3.2-010
• ASP- PCD cutting tool blanks
• Meas : Product Number ASP-R360/30.0, Overall thickness:3.2mm, Grain size:3.2mm
