Diamonds Dies

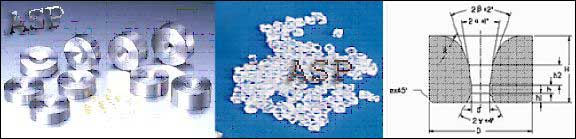

ASP diamonds Dies manufactured with single crystal diamonds and monocrystal diamond produce drawn wire with superior surface conditions and the ability to maintain very tight diameter tolerances. Drawing applications and required hole size diameters are used to help determine which diamond crystal is the appropriate material with which to work.

Natural & Mono Diamond dies are usually used to draw very fine wire and in some cases to draw the final sizes, where better surface finish of wire is required.

Precise die orientation
Accurate die profile.
Highly polished finish from bell to back relief.
Accurately sized
Straight & consistent reduction angle
Maximum wear resistance
Minimum die pull
Excellent wire surface quality
Hole diameters: 0.010 - 1.750 mm

Applications :

Nonferrous wire
including copper
aluminum
electromagnetic wire and stainless steel
gold wire
silver wire.

Single Crystal Diamonds : (.0004 - .144 inch) (0.0102mm - 3.658 mm)

Specifications and Tolerances of Standard Single Crystal Diamond Dies

Size Range	Hole Diameter Tolerance	Ovality Tolerance	Casing Dimensions
IN: .00026 - 0008 MM: .0066 - .020	IN: .00001 MM: .00025	IN: .000005 MM: .00013	IN: 1.0 or 1.25x.250 MM: 25 or 28x6
IN: .00081 - .00125 MM: .0201 - .03175	IN: .000015 MM: .00038	IN: .000008 MM: .00020	IN: 1.0 or 1.125x.250 MM: 25 or 28x6
IN: .001251 - .0025 MM: .031751 - .0635	IN: .00002 MM: .00051	IN: .00001 MM: .00025	IN: 1.0 or 1.125x.250 MM: 25 or 28x6
IN: .00251 - .005 MM: .063351 - .1270	IN: .000035 MM: .00089	IN: .00002 MM: .00051	IN: l.0 or 1.125x.312 MM: 25 or 28x8
IN: .0051 - .010 MM: .1271 - .2540	IN: .00005 MM: .00127	IN: .00008 MM: .00076	IN: 1.0 or 1.125x.312 MM: 25 or 28x8
IN: .0101 - .020 MM: .2541 - .5080	IN: .000075 MM: .0019	IN: .00004 MM: .00102	IN: 1.0 or 1.125x.312 MM: 25 or 28x8
IN: .0201 - .040 MM: .5081 - 1.016	IN: .0001 MM: .00254	IN: .00006 MM: .0015	IN: 1.0 or 1.125x.375 MM: 25 or 28x10
IN: .0401 - .060 MM: 1.0161 - 1.524	IN: .000125 MM: .00318	IN: .00008 MM: .0020	IN: 1.0 or 1.125x.375 MM: 25 or 28x10
IN: .0601 - .090 MM: 1.5241 - 2.286	IN: .00015 MM: .0038	IN: .0001 MM: .00254	IN: 1.0 or 1.125x.500 MM: 25 or 28x12
IN: .0901 - .120 MM: 2.2861 - 3.048	IN: .000175 MM: .00445	IN: .000125 MM: .00318	IN: 1.0 or 1.125x.500 MM: 25 or 28x12
IN: .1201 & Larger MM: 3.0481 & Larger	IN: .0002 MM: .0051	IN: .00015 MM: .0038	IN: 1.0 or 1.125x.625 MM: 25 or 28x15

Standard Reduction Angles are 10 through 23° in 2° increments (Ex: 14-16°)
Standard Bearing Length range is 10 through 70% of hole diameter in 20% increments (Ex: 20 - 40%)
Elongation Dies and Sets are available with + or -1/2 percent standard elongation tolerance.
Special configurations, tolerances and casing dimensions are available upon request.
